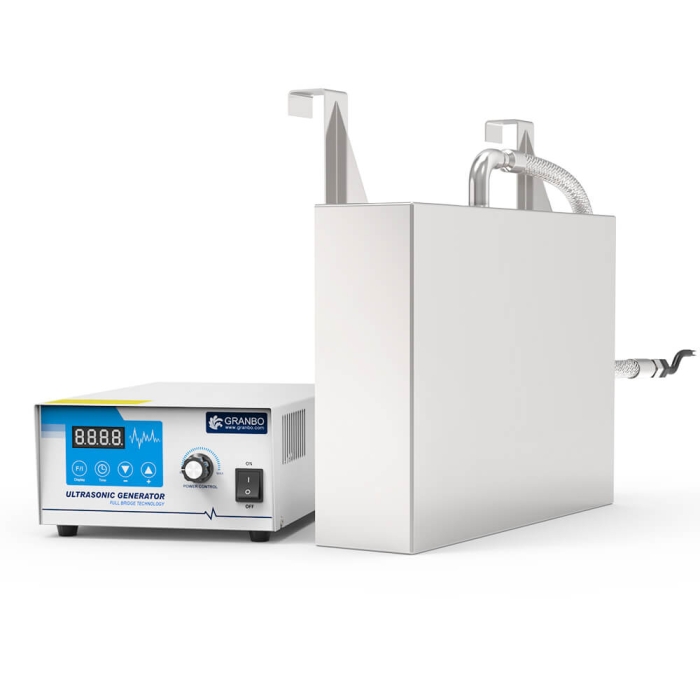

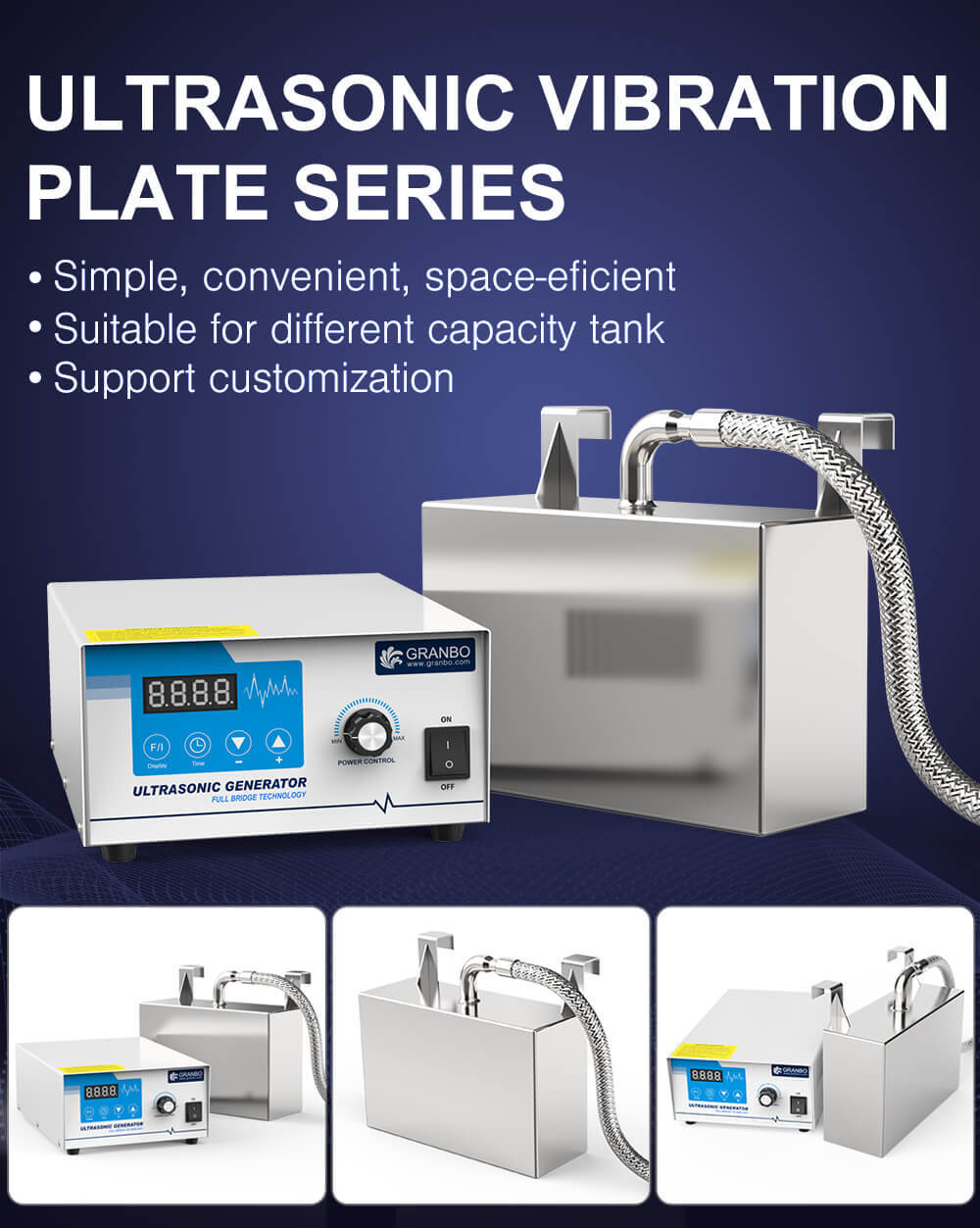

300W Small type of immersible ultrasonic transducer packs

$423.00
In stock
SKU
GK0618
*Specification*
Model:
GK0618
Plate Size :
280 * 180 * 100 mm
Ultasonic Power:
0-300W
Transducers:
6 PCs
Frequency:
28 / 40khz(customizable)
Generator Size:
420*280*200 mm (220-240V);
490*350*220 mm (110-120V)
Cable Length:
Default 3m (other require, feel free to contact us)
Plate Material:
Default SUS304, 2.0 mm (Support Customize Chrome-Plated, titanium plate, aviation material, etc. harder material )
fast shipping
Hassle Free Returns

Best Ultrasonic Transducer Packs for Multiple Usage~



1)Features
  • Plate Material: Default SUS304, 2.0 mm (Support Customize Chrome-Plated, titanium plate, aviation material, etc. harder material )
  • Adjustable power: Ultrasonic power can be manually adjusted.
  • Generator: Separate excitation type.
  • Packing: Export woodenbox of the plate, Thickened CTN of the generator. (refer to the packing image)
2)Benifits
  • You can set the right power intensity for the specific cleaning task, from gentle to strong.
  • Aids in mixing, dissolving, and dispersing samples.
  • Provides uniform and thorough cleaning.  Prevents damage to electronic components.
  • Improves cleaning effectiveness; required for removal of grease and oil.
  • Accomplishes a broad range of different types of cleaning tasks.
  • Simplifies maintenance.
3)Brief overview of ultrasonic cleaning
  • Ultrasonic cleaning is to use the cavitation effect of ultrasonic in the liquid to directly and indirectly affect the liquid and dirt, so that the dirt layer is dispersed, emulsified and peeled to achieve the cleaning purpose. Ultrasonic cleaning is the most effective method to remove foreign matters and dirt on the surface of objects, with high cleaning efficiency and good quality. It has many advantages that cannot be replaced by other cleaning methods, and can clean the external and internal surfaces of objects efficiently.
  • Ultrasonic cleaning not only cleans a wide range of dirt, including common pollutants such as dust and oil, and special pollutants with radioactivity such as grinding paste, but also cleans quickly. The residue of dirt after cleaning is much less than that of other cleaning methods. Ultrasonic cleaning can also clean complex parts and dirt in deep holes, blind holes, and slits. It does not damage the surface of the object or only causes slight damage. It has little pollution to the environment, relatively low cost, and no damage to operators.
  • At present, ultrasonic cleaning has become an indispensable process for many production and processing enterprises. Its applications include machinery, electronics, materials, chemicals, textiles, aviation, nuclear energy. Petroleum, medicine, food and other industrial sectors, as well as agriculture, environmental protection, scientific research, daily life and other fields.

Product Video Introduction

Product Details

Related Products
Install Methods
 Customize / OEM / ODM  (Professional Design Team)
 Customers' Cases

More Information
Manufacturer Granbo
Function Digital Control, Power Adjustable, Long Working, Immersible Transducer
Model Number GK0618
Origin China
Ultrasonic frequency 28/40/68/80/120KHz (Customizable)
Voltage (V) AC 110~120V/60Hz; AC 220~240V/50HZ
Product name Granbo GK0618 Ultrasonic Cleaner
Material of tank Material of plate: SUS 304, 2.0mm (Customizable)
Heating power Customizable
Heater -
Timer 0-99mins/Long time working
Tank Size Generator Size: 420*280*200 mm (220-240V); 490*350*220 mm (110-120V)
Unit Size Plate Size: 280*180*100mm (Customizable)
