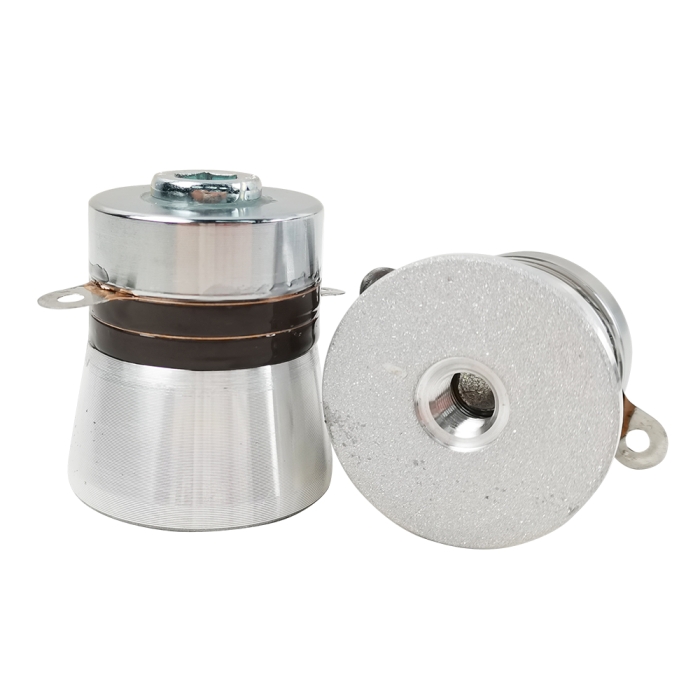

60W 40KHz Piezoelectric High-Efficiency Ultrasonic Transducer

$15.00
In stock
SKU
GB-3840-4SH

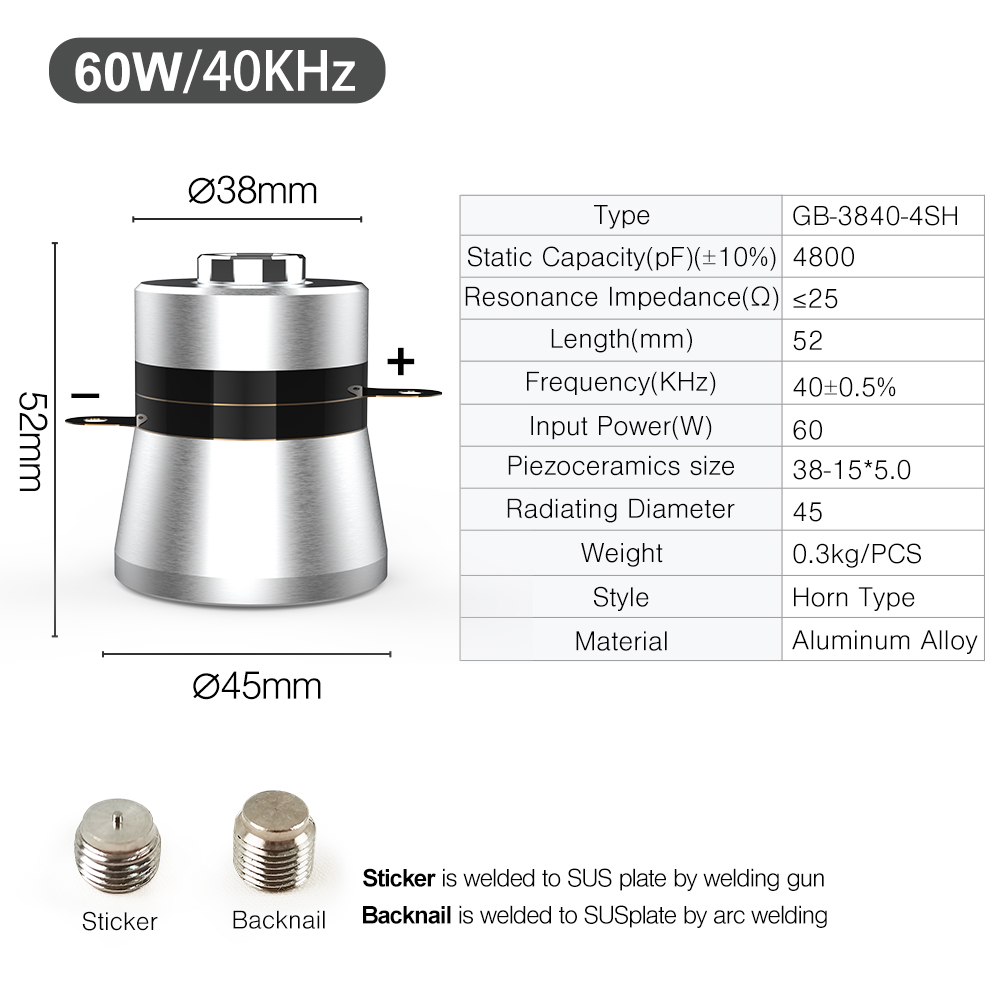

1. Power: Outputs a maximum of 60 watts.
2. Frequency: Operates at 40kHz ±0.5%
3. Resonance Impedance: ≤25Ω
4. Static Capacity (pF)(±10%):  4800
5. Material: piezoelectric ceramics & Aluminum alloy
6. Application: Ultrasonic cleaning device DIY / Immersible transducer packs

fast shipping
Hassle Free Returns
More Information
Manufacturer Granbo
Function Parts & Accessories
Model Number GB-3840-4SH
Origin China
Ultrasonic frequency 40Khz
Ultrasonic power 60W
Voltage (V) AC 110V/220V/380V
Product name Granbo GB-3840-4SH Ultrasonic Transducer
Material of tank SUS 304
Heating power -
Heater 20~80°C
Timer 0-30mins
Unit Size Φ45*52*Φ38mm
